servlet::HttpServlet Class Reference

#include <HttpServlet.h>

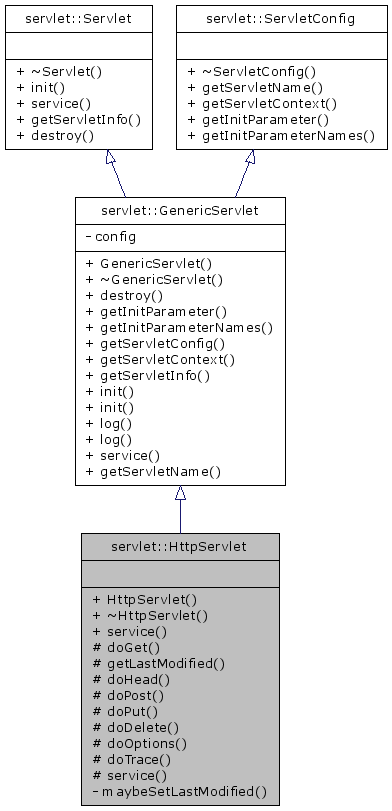

Inheritance diagram for servlet::HttpServlet:

[legend]

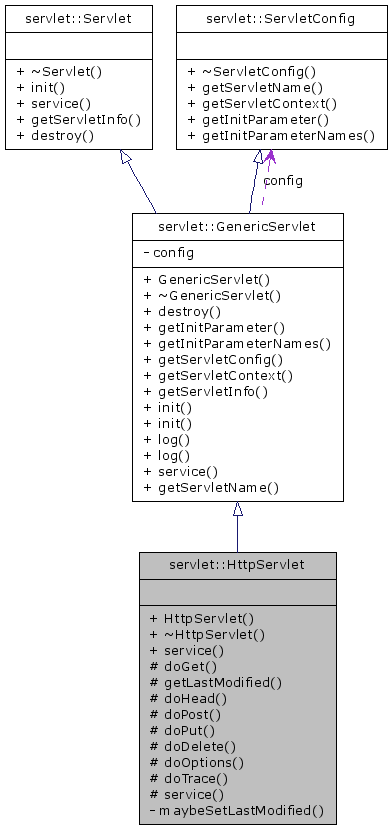

Collaboration diagram for servlet::HttpServlet:

[legend]

List of all members.

Public Member Functions
	HttpServlet ()
virtual	~HttpServlet ()
virtual void	service (ServletRequest &req, ServletResponse &res)
Protected Member Functions
virtual void	doGet (HttpServletRequest &req, HttpServletResponse &resp)
virtual long	getLastModified (const HttpServletRequest &)
virtual void	doHead (HttpServletRequest &req, HttpServletResponse &resp)
virtual void	doPost (HttpServletRequest &req, HttpServletResponse &resp)
virtual void	doPut (HttpServletRequest &req, HttpServletResponse &resp)
virtual void	doDelete (HttpServletRequest &req, HttpServletResponse &resp)
virtual void	doOptions (HttpServletRequest &req, HttpServletResponse &resp)
virtual void	doTrace (HttpServletRequest &req, HttpServletResponse &resp)
virtual void	service (HttpServletRequest &req, HttpServletResponse &resp)
Private Member Functions
virtual void	maybeSetLastModified (HttpServletResponse &resp, long lastModified)

---

Detailed Description

Provides an abstract class to be subclassed to create an HTTP servlet suitable for a Web site. A subclass of HttpServlet must override at least one method, usually one of these:

• doGet, if the servlet supports HTTP GET requests
• doPost, for HTTP POST requests
• doPut, for HTTP PUT requests
• doDelete, for HTTP DELETE requests
• init and destroy, to manage resources that are held for the life of the servlet
• getServletInfo, which the servlet uses to provide information about itself

There's almost no reason to override the service method. service handles standard HTTP requests by dispatching them to the handler methods for each HTTP request type (the doXXX methods listed above).

Likewise, there's almost no reason to override the doOptions and doTrace methods.

Servlets typically run on multithreaded servers, so be aware that a servlet must handle concurrent requests and be careful to synchronize access to shared resources. Shared resources include in-memory data such as instance or class variables and external objects such as files, database connections, and network connections. See the Java Tutorial on Multithreaded Programming for more information on handling multiple threads in a Java program.

Author:

Various

Version:

$Version$

Definition at line 109 of file HttpServlet.h.

---

Constructor & Destructor Documentation

servlet::HttpServlet::HttpServlet

(

)

[inline]

Does nothing, because this is an abstract class.

Definition at line 116 of file HttpServlet.h.

virtual servlet::HttpServlet::~HttpServlet

(

)

[inline, virtual]

Definition at line 117 of file HttpServlet.h.

---

Member Function Documentation

void servlet::HttpServlet::doDelete	(	HttpServletRequest &	req,
		HttpServletResponse &	resp
	)			[protected, virtual]

Called by the server (via the service method) to allow a servlet to handle a DELETE request.

The DELETE operation allows a client to remove a document or Web page from the server.

This method does not need to be either safe or idempotent. Operations requested through DELETE can have side effects for which users can be held accountable. When using this method, it may be useful to save a copy of the affected URL in temporary storage.

If the HTTP DELETE request is incorrectly formatted, doDelete returns an HTTP "Bad Request" message.

Parameters:

	req	the servlet::HttpServletRequest object that contains the request the client made of the servlet
	resp	the servlet::HttpServletResponse object that contains the response the servlet returns to the client

Exceptions:

	IOException	if an input or output error occurs while the servlet is handling the DELETE request
	ServletException	if the request for the DELETE cannot be handled

Definition at line 100 of file HttpServlet.cpp.

References servlet::not_supported().

Referenced by service().

Here is the call graph for this function:

void servlet::HttpServlet::doGet	(	HttpServletRequest &	req,
		HttpServletResponse &	resp
	)			[protected, virtual]

Called by the server (via the service method) to allow a servlet to handle a GET request.

Overriding this method to support a GET request also automatically supports an HTTP HEAD request. A HEAD request is a GET request that returns no body in the response, only the request header fields.

When overriding this method, read the request data, write the response headers, get the response's writer or output stream object, and finally, write the response data. It's best to include content type and encoding. When using a PrintWriter object to return the response, set the content type before accessing the PrintWriter object.

The servlet container must write the headers before committing the response, because in HTTP the headers must be sent before the response body.

Where possible, set the Content-Length header (with the servlet::ServletResponse#setContentLength method), to allow the servlet container to use a persistent connection to return its response to the client, improving performance. The content length is automatically set if the entire response fits inside the response buffer.

When using HTTP 1.1 chunked encoding (which means that the response has a Transfer-Encoding header), do not set the Content-Length header.

The GET method should be safe, that is, without any side effects for which users are held responsible. For example, most form queries have no side effects. If a client request is intended to change stored data, the request should use some other HTTP method.

The GET method should also be idempotent, meaning that it can be safely repeated. Sometimes making a method safe also makes it idempotent. For example, repeating queries is both safe and idempotent, but buying a product online or modifying data is neither safe nor idempotent.

If the request is incorrectly formatted, doGet returns an HTTP "Bad Request" message.

Parameters:

	req	an servlet::HttpServletRequest object that contains the request the client has made of the servlet
	resp	an servlet::HttpServletResponse object that contains the response the servlet sends to the client

Exceptions:

	IOException	if an input or output error is detected when the servlet handles the GET request
	ServletException	if the request for the GET could not be handled

See also:

javax.servlet.ServletResponse::setContentType

Definition at line 78 of file HttpServlet.cpp.

References servlet::not_supported().

Referenced by doHead(), and service().

Here is the call graph for this function:

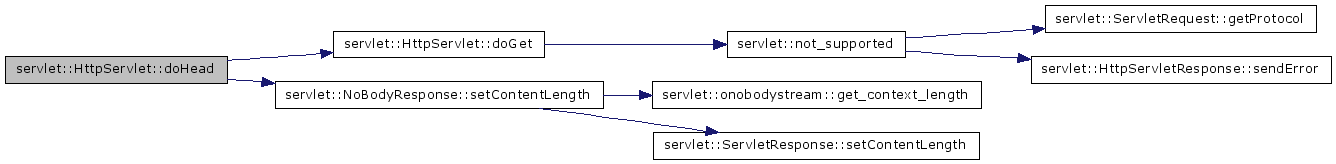

void servlet::HttpServlet::doHead	(	HttpServletRequest &	req,
		HttpServletResponse &	resp
	)			[protected, virtual]

Receives an HTTP HEAD request from the protected service method and handles the request. The client sends a HEAD request when it wants to see only the headers of a response, such as Content-Type or Content-Length. The HTTP HEAD method counts the output bytes in the response to set the Content-Length header accurately.

If you override this method, you can avoid computing the response body and just set the response headers directly to improve performance. Make sure that the doHead method you write is both safe and idempotent (that is, protects itself from being called multiple times for one HTTP HEAD request).

If the HTTP HEAD request is incorrectly formatted, doHead returns an HTTP "Bad Request" message.

Parameters:

	req	the request object that is passed to the servlet
	resp	the response object that the servlet uses to return the headers to the clien

Exceptions:

	IOException	if an input or output error occurs
	ServletException	if the request for the HEAD could not be handled

Definition at line 83 of file HttpServlet.cpp.

References doGet(), and servlet::NoBodyResponse::setContentLength().

Referenced by service().

Here is the call graph for this function:

void servlet::HttpServlet::doOptions	(	HttpServletRequest &	req,
		HttpServletResponse &	resp
	)			[protected, virtual]

Called by the server (via the service method) to allow a servlet to handle a OPTIONS request.

The OPTIONS request determines which HTTP methods the server supports and returns an appropriate header. For example, if a servlet overrides doGet, this method returns the following header:

Allow: GET, HEAD, TRACE, OPTIONS

There's no need to override this method unless the servlet implements new HTTP methods, beyond those implemented by HTTP 1.1.

Parameters:

	req	the servlet::HttpServletRequest object that contains the request the client made of the servlet
	resp	the servlet::HttpServletResponse object that contains the response the servlet returns to the client

Exceptions:

	IOException	if an input or output error occurs while the servlet is handling the OPTIONS request
	ServletException	if the request for the OPTIONS cannot be handled

Definition at line 104 of file HttpServlet.cpp.

References servlet::not_supported().

Referenced by service().

Here is the call graph for this function:

void servlet::HttpServlet::doPost	(	HttpServletRequest &	req,
		HttpServletResponse &	resp
	)			[protected, virtual]

Called by the server (via the service method) to allow a servlet to handle a POST request.

The HTTP POST method allows the client to send data of unlimited length to the Web server a single time and is useful when posting information such as credit card numbers.

When overriding this method, read the request data, write the response headers, get the response's writer or output stream object, and finally, write the response data. It's best to include content type and encoding. When using a PrintWriter object to return the response, set the content type before accessing the PrintWriter object.

The servlet container must write the headers before committing the response, because in HTTP the headers must be sent before the response body.

Where possible, set the Content-Length header (with the servlet::ServletResponse#setContentLength method), to allow the servlet container to use a persistent connection to return its response to the client, improving performance. The content length is automatically set if the entire response fits inside the response buffer.

When using HTTP 1.1 chunked encoding (which means that the response has a Transfer-Encoding header), do not set the Content-Length header.

This method does not need to be either safe or idempotent. Operations requested through POST can have side effects for which the user can be held accountable, for example, updating stored data or buying items online.

If the HTTP POST request is incorrectly formatted, doPost returns an HTTP "Bad Request" message.

Parameters:

	req	an servlet::HttpServletRequest object that contains the request the client has made of the servlet
	resp	an servlet::HttpServletResponse object that contains the response the servlet sends to the client

Exceptions:

	IOException	if an input or output error is detected when the servlet handles the request
	ServletException	if the request for the POST could not be handled

See also:

javax.servlet.ServletOutputStream

javax.servlet.ServletResponse::setContentType

Definition at line 90 of file HttpServlet.cpp.

References servlet::not_supported().

Referenced by service().

Here is the call graph for this function:

void servlet::HttpServlet::doPut	(	HttpServletRequest &	req,
		HttpServletResponse &	resp
	)			[protected, virtual]

Called by the server (via the service method) to allow a servlet to handle a PUT request.

The PUT operation allows a client to place a file on the server and is similar to sending a file by FTP.

When overriding this method, leave intact any content headers sent with the request (including Content-Length, Content-Type, Content-Transfer-Encoding, Content-Encoding, Content-Base, Content-Language, Content-Location, Content-MD5, and Content-Range). If your method cannot handle a content header, it must issue an error message (HTTP 501 - Not Implemented) and discard the request. For more information on HTTP 1.1, see RFC 2616 .

This method does not need to be either safe or idempotent. Operations that doPut performs can have side effects for which the user can be held accountable. When using this method, it may be useful to save a copy of the affected URL in temporary storage.

If the HTTP PUT request is incorrectly formatted, doPut returns an HTTP "Bad Request" message.

Parameters:

	req	the servlet::HttpServletRequest object that contains the request the client made of the servlet
	resp	the servlet::HttpServletResponse object that contains the response the servlet returns to the client

Exceptions:

	IOException	if an input or output error occurs while the servlet is handling the PUT request
	ServletException	if the request for the PUT cannot be handled

Definition at line 95 of file HttpServlet.cpp.

References servlet::not_supported().

Referenced by service().

Here is the call graph for this function:

void servlet::HttpServlet::doTrace	(	HttpServletRequest &	req,
		HttpServletResponse &	resp
	)			[protected, virtual]

Called by the server (via the service method) to allow a servlet to handle a TRACE request.

A TRACE returns the headers sent with the TRACE request to the client, so that they can be used in debugging. There's no need to override this method.

Parameters:

	req	the servlet::HttpServletRequest object that contains the request the client made of the servlet
	resp	the servlet::HttpServletResponse object that contains the response the servlet returns to the client

Exceptions:

	IOException	if an input or output error occurs while the servlet is handling the TRACE request
	ServletException	if the request for the TRACE cannot be handled

Definition at line 158 of file HttpServlet.cpp.

References servlet::not_supported().

Referenced by service().

Here is the call graph for this function:

virtual long servlet::HttpServlet::getLastModified

(

const HttpServletRequest &

)

[inline, protected, virtual]

Returns the time the HttpServletRequest object was last modified, in milliseconds since midnight January 1, 1970 GMT. If the time is unknown, this method returns a negative number (the default).

Servlets that support HTTP GET requests and can quickly determine their last modification time should override this method. This makes browser and proxy caches work more effectively, reducing the load on server and network resources.

Parameters:

req

the HttpServletRequest object that is sent to the servlet

Returns:

a long integer specifying the time the HttpServletRequest object was last modified, in milliseconds since midnight, January 1, 1970 GMT, or -1 if the time is not known

Definition at line 212 of file HttpServlet.h.

Referenced by service().

void servlet::HttpServlet::maybeSetLastModified	(	HttpServletResponse &	resp,
		long	lastModified
	)			[private, virtual]

Definition at line 232 of file HttpServlet.cpp.

References servlet::HttpServletResponse::containsHeader(), and servlet::HttpServletResponse::setDateHeader().

Referenced by service().

Here is the call graph for this function:

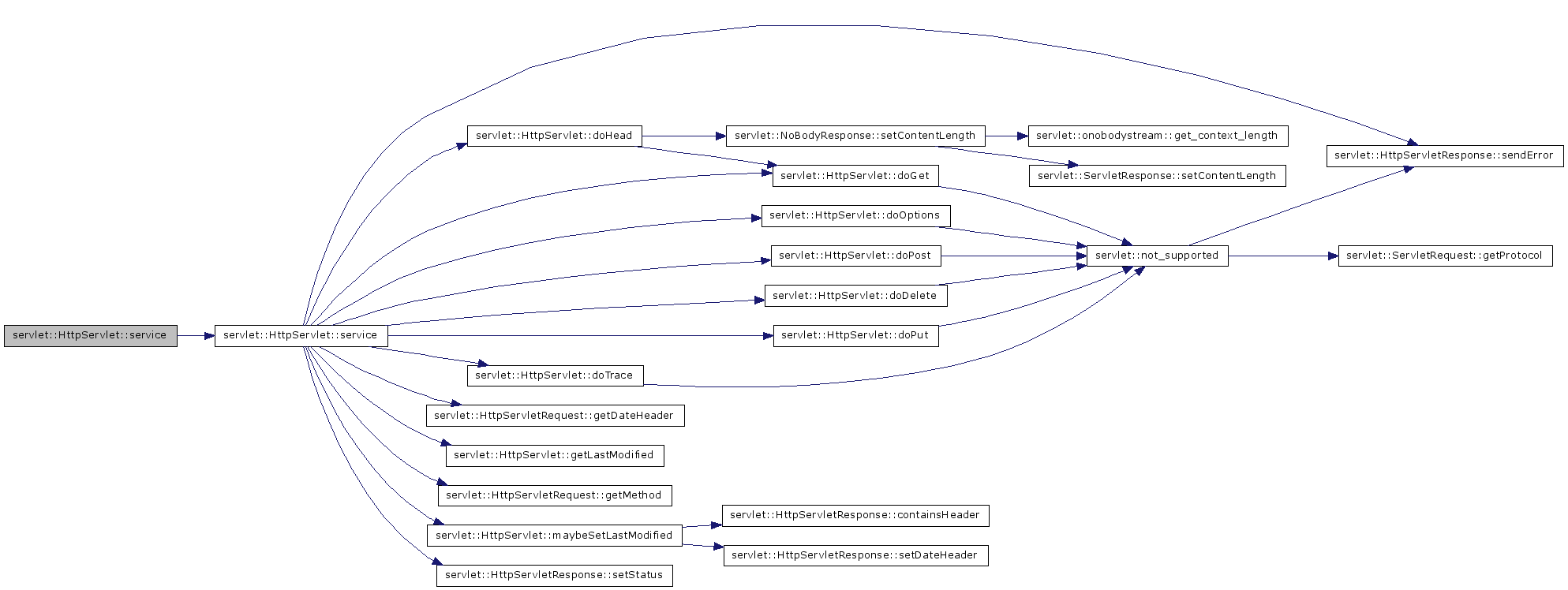

void servlet::HttpServlet::service	(	ServletRequest &	req,
		ServletResponse &	res
	)			[virtual]

Dispatches client requests to the protected service method. There's no need to override this method.

Parameters:

	req	the servlet::HttpServletRequest object that contains the request the client made of the servlet
	res	the servlet::HttpServletResponse object that contains the response the servlet returns to the client

Exceptions:

	IOException	if an input or output error occurs while the servlet is handling the HTTP request
	ServletException	if the HTTP request cannot be handled

See also:

javax.servlet.Servlet::service

Implements servlet::GenericServlet.

Definition at line 240 of file HttpServlet.cpp.

References service().

Here is the call graph for this function:

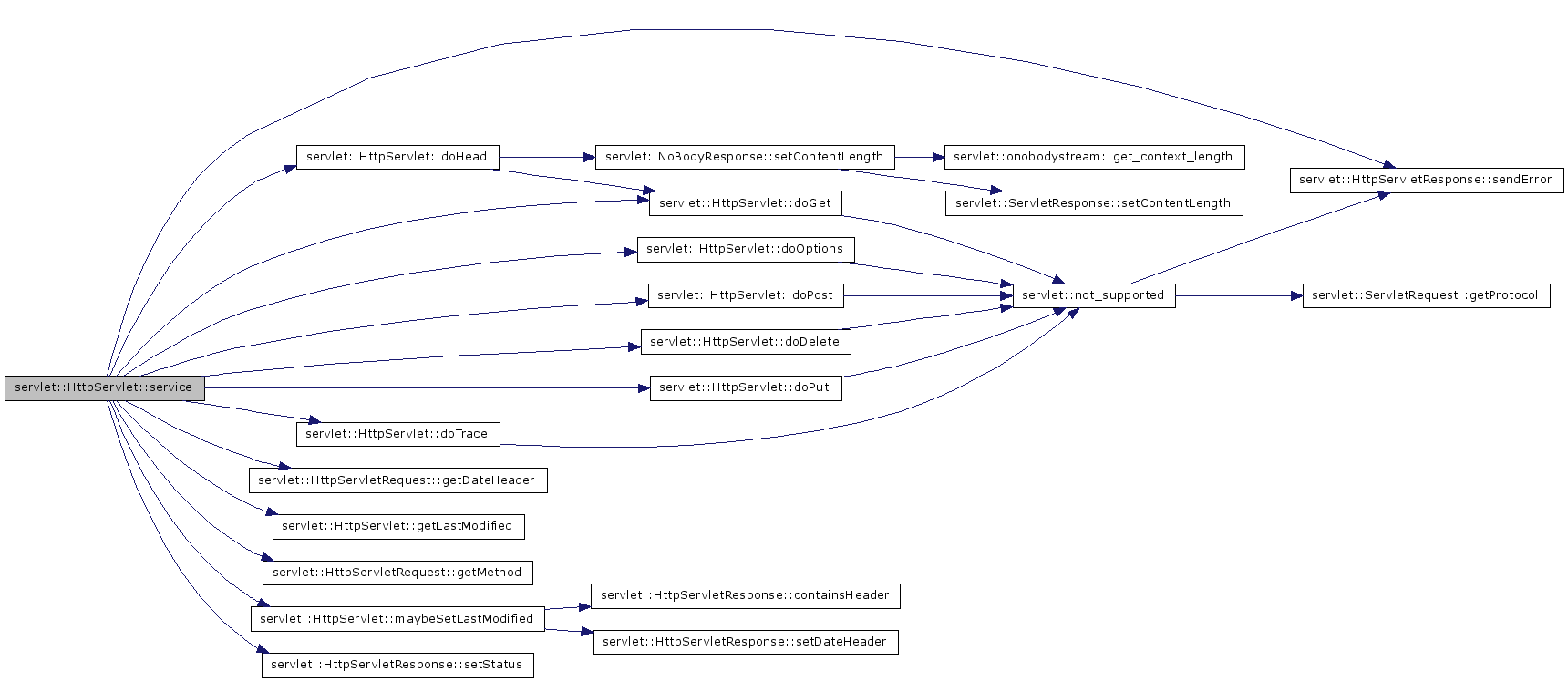

void servlet::HttpServlet::service	(	HttpServletRequest &	req,
		HttpServletResponse &	resp
	)			[protected, virtual]

Receives standard HTTP requests from the public service method and dispatches them to the doXXX methods defined in this class. This method is an HTTP-specific version of the servlet::Servlet#service method. There's no need to override this method.

Parameters:

	req	the servlet::HttpServletRequest object that contains the request the client made of the servlet
	resp	the servlet::HttpServletResponse object that contains the response the servlet returns to the client

Exceptions:

	IOException	if an input or output error occurs while the servlet is handling the HTTP request
	ServletException	if the HTTP request cannot be handled

See also:

javax.servlet.Servlet::service

Definition at line 187 of file HttpServlet.cpp.

References doDelete(), doGet(), doHead(), doOptions(), doPost(), doPut(), doTrace(), servlet::HttpServletRequest::getDateHeader(), getLastModified(), servlet::HttpServletRequest::getMethod(), maybeSetLastModified(), servlet::HttpServletResponse::SC_NOT_IMPLEMENTED, servlet::HttpServletResponse::SC_NOT_MODIFIED, servlet::HttpServletResponse::sendError(), and servlet::HttpServletResponse::setStatus().

Referenced by service().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• include/servlet/HttpServlet.h
• src/libcserv/HttpServlet.cpp
